Sense of Scale and the Digital Age of Architecture
... if you're having a problem with a perception and understanding of architectural scale, I don't think digital media is to blame.
When I was in school, like 35 years ago, whenever I wasn't sure whether what I was drawing was too big or too small, I would quickly draw a plan of my drawing table (3'x6') next to the plan I was drawing. I could thus more easily gauge my planning decisions via comparison with a dimension I knew intimately. I can still quickly do the same type of scale comparison via digital media, although now far more enhanced.

This is a plan of the room I'm presently working in:



Here's the room in 3D:



Here's the room within the Villa Rotunda, which is within the plan I'm currently working on:




Here's more of the drawing I'm currently working on:

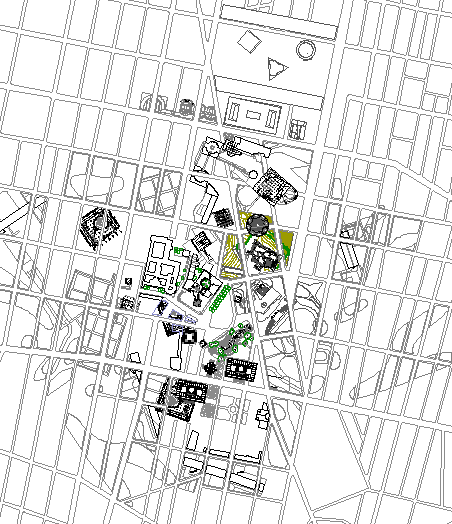

Here's the full extent of the drawing:



In many ways, architectural scale is a comparative study, and digital media has made 1::1 comparison easy.

««««

»»»»
