Vincent Scully

Louis I. Kahn

  1   b   c   d   e   f   g   h   i   j   k   l   m   n   o   p   q   r   s   t   u   v   w   x

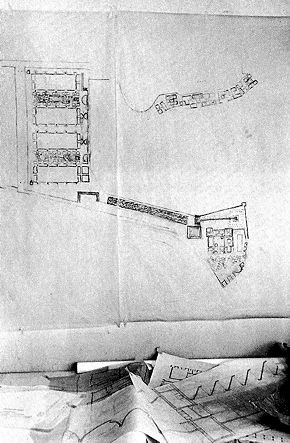

Salk Institute. Sketch plan.

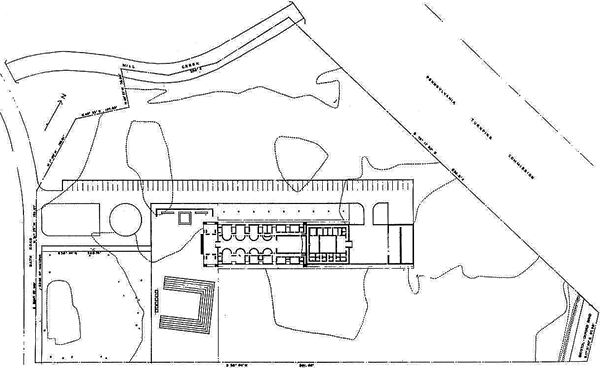

Town Hall, Bristol, Pennsylvania, 1960-. Plan.

Kahn's Town Hall for Bristol, Pennsylvania, at present in the planning stage, is also a clearly Roman scheme, but as the plans of the Salk Institute for Biological Studies take shape it begins to appear that this ambitious project will constitute Kahn's most complete and integrated work to date. Dr. Jonas Salk, having visited the Richards Laboratories, felt that Kahn was the only architect who could give him what he wanted: a place where scientists engaged in pure research could work man environment consonant with the larger humanistic meaning of what they did. He liked the Richards towers, but got a low building himself, and understood the point of that in terms of his site and his functional requirements.

The program resolved itself into three main divisions: laboratories, a common meeting house, and housing. The original site, running directly to the cliffs above the Pacific, was more extensive than the present one. Kahn's preliminary presentation, of early 1960, consisted of laboratory towers, something like those at Pennsylvania, near the road, housing scattered in a loose arc farther in, and finally an extensive Meeting House, like a palatial expansion of the Fleisher project, above the cliff. The site was then perforce restricted, split by a deep ravine which thinned it down from its widest portion to a narrow saddle which culminated in a high bluff, now looking toward the sea over the coastal cliffs. Kahn's later scheme, at present ( March, 1962) getting into working drawings, admirably uses the shape of the place: flat laboratories on the wide plateau, dwellings in a taut contour arc along the edge of the ravine, the Meeting House filling the top of the bluff and reached only by a sweep of road along the saddle. The dwellings, connected by a single walkway along the height, are still under design. The laboratory has achieved its final state and the Meeting House practically so.

Jonas Salk Institute for Biological Studies, San Diego, California, 1959-. Site model from above.

Salk Institute. Site model from the west.

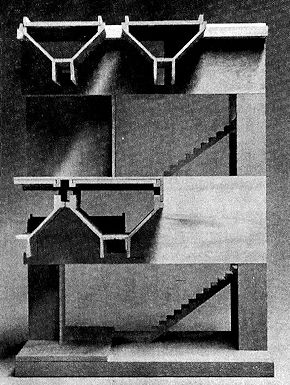

Salk Institute. Research Building. Section of model.

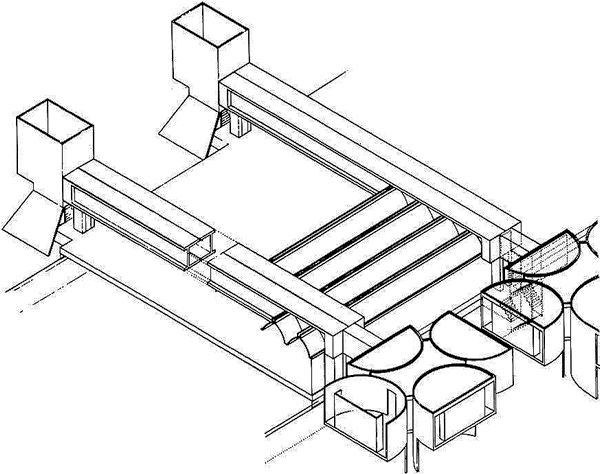

Salk Institute. Research Building. Isometric drawing of laboratories and studies at early stage.

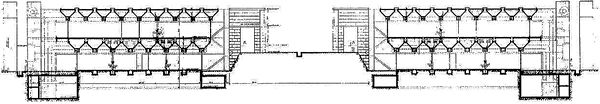

Salk Institute. Research Building. Longitudinal section of two units.

In the laboratories the vertical ducts of the Richards Building have been turned on their sides, housed in the hollows of spanning box girders and vented from huge hoods at the flanks of the building ( plates 108, 109, 111 ). The pre-cast units of structure have thus continued to become larger as the crane can lift them. Order, once an affair of repetitive crystals for Kahn, is now felt in grand components, space-making themselves. The folded cross-spanning sections are in the depth of the girders, the lower one high enough to walk through, and all utilities are now directly channeled through the structure, sent down to the lower story, up to the second. The laboratories themselves occupy the entirely open spaces created by the mighty beams. Entrance to them is through the columns, once splayed to their footing ( plate 108 ), now rectangular ( plate 111 ). Here structure, "served" spaces, and "servant" spaces are entirely integrated, so resolving the conflicts apparent in the Richards Building; and this "meaningful order" was almost instantly arrived at in Kahn's design.

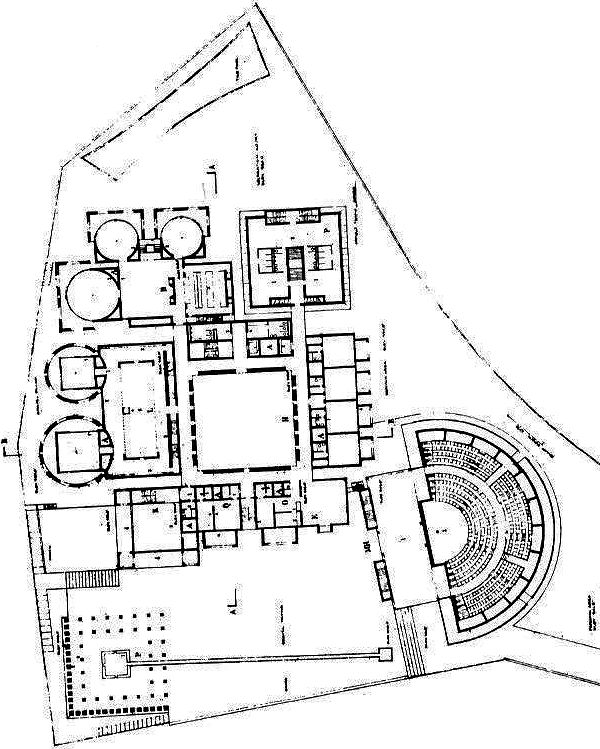

Salk Institute. Meeting House. Plan.

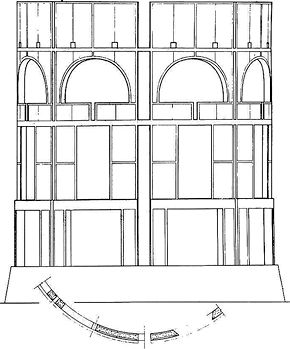

Salk Institute. Meeting House. Screen wall. Elevation detail.

Salk Institute. Meeting House. Model, showing section of court.

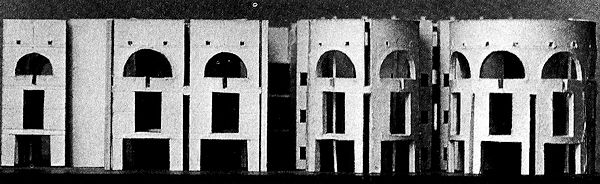

Salk Institute. Meeting House. Model. West elevation.
